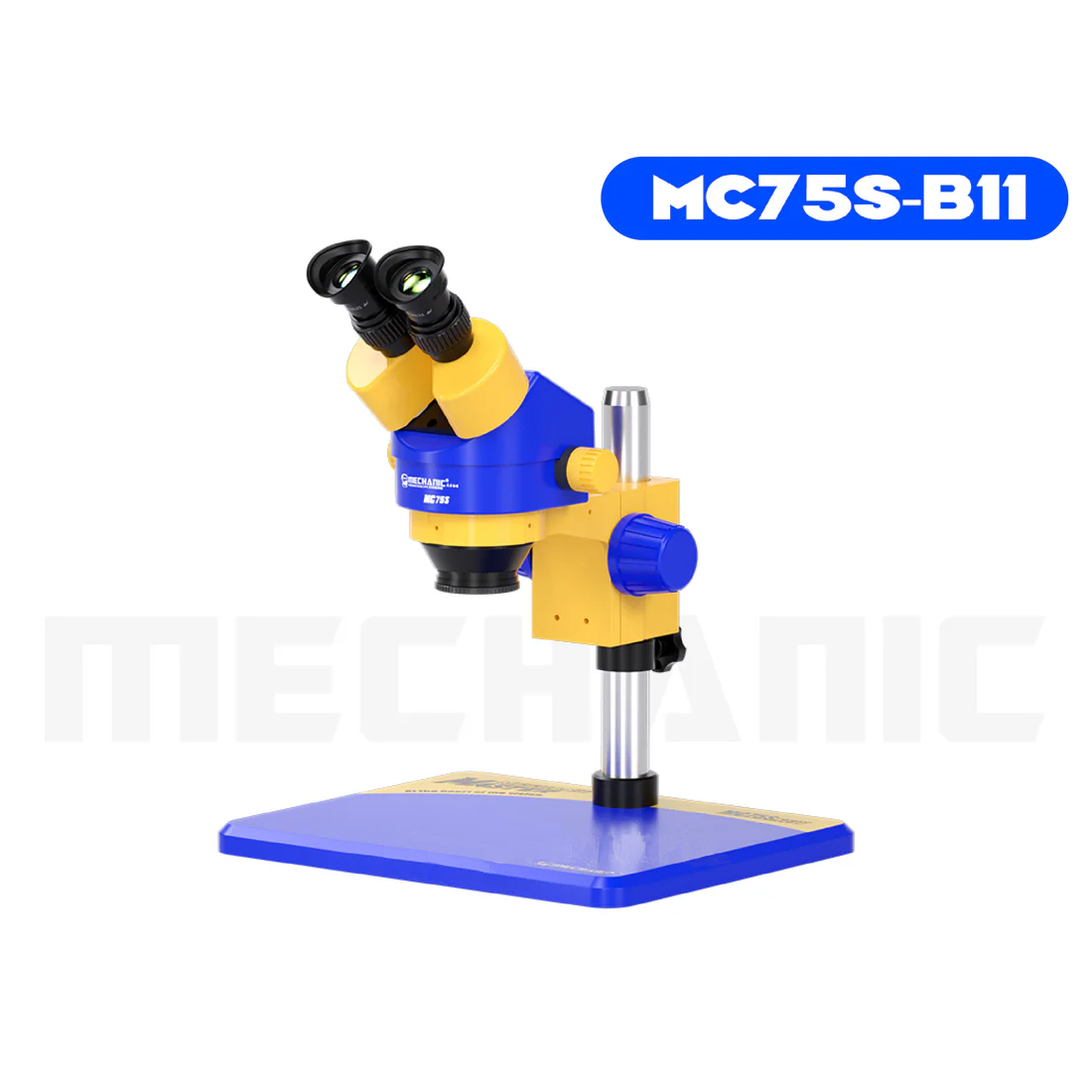

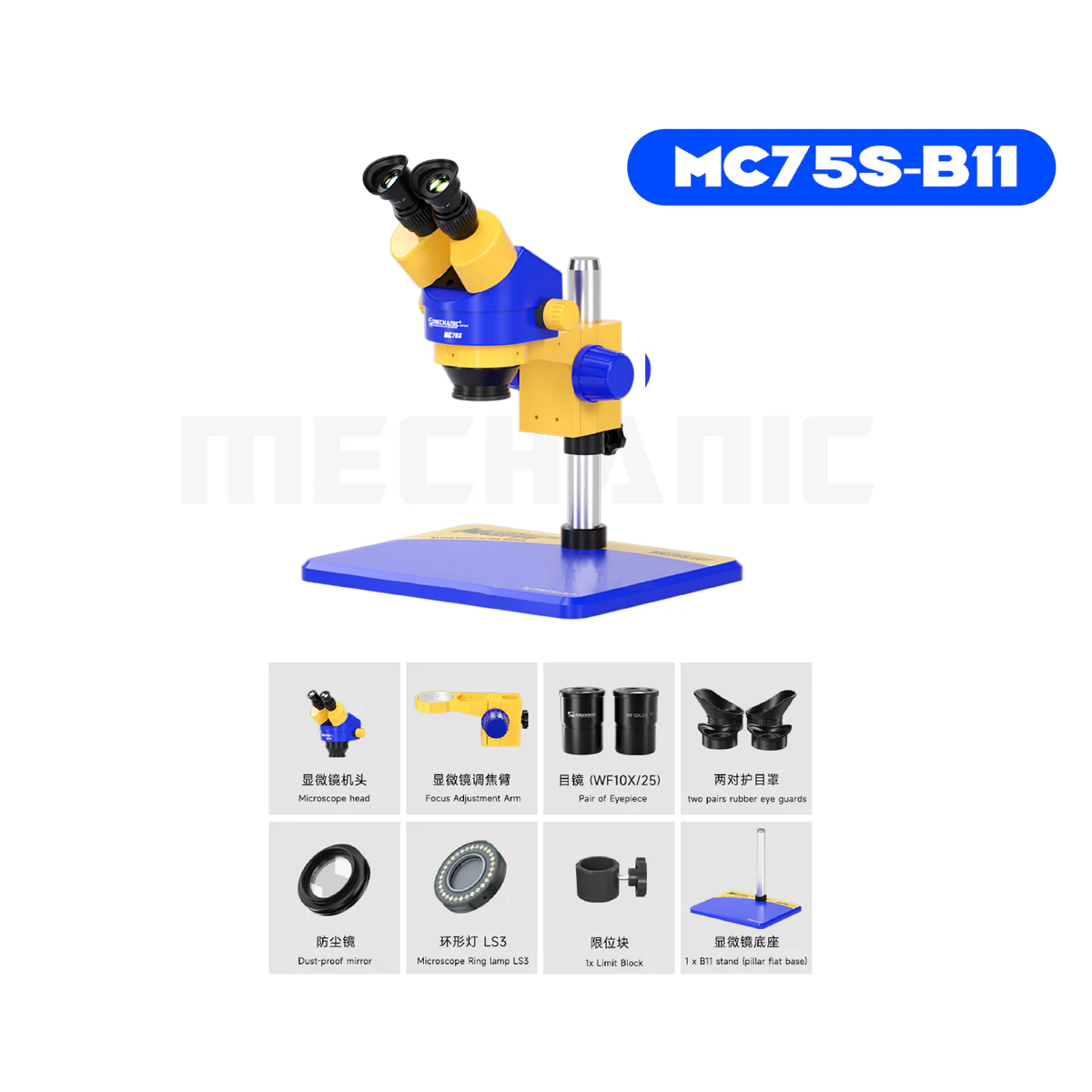

MECHANIC MC75S-B11 HD Trinocular Microscope ForMobile Phone PCB Rework Assembly Industrial Grade Stereo Detect Repair Tools

MECHANIC MC75S-B11 HD Trinocular Microscope ForMobile Phone PCB Rework Assembly Industrial Grade Stereo Detect Repair Tools

$147.06
$180.00 $147.06
Sale Sold out
Shipping calculated at checkout.
Option:

Description
Mechanic MC75S 7-45X Industrial Binocular Stereo Zoom Microscope With B11 Base Holder For Mobile Phone PCB SMD BGA CPU Chip Soldering Repair. Mechanic MC75S-B11 7X-45X binocular microscope with WF10X25 eyepiece and LED lamp light.

Specification:
Name: Mechanic MC75S Stereo Binocular Microscope.
Auxiliary objective: standard with dust-proof; Optional lens: 0.5X, 1.5X, 2X.
Eyepiece: WF10X/25mm High Eyepoint Eyepiece.
Zoom Range: 0.7X-4.5X.
Magnification: 7X-45X.
Working Distance: 100MM.
Auxiliary objective lens(optional): 0.5X/165mm, 0.75X/117mm, 1.5X/45mm, 2X/30mm.
WF10X25 Magnification: 7X/45X, 3.5X/22.5X, 10.5X/67.5X, 14.3X/2.2X.
View: 28.6mm/4.4mm, 57.1mm/8.9mm, 19mm/3mm, 14.3mm/2.2mm.
Eyepiece(optional): WF15X/15mm, WF10X/22mm, WF20X/10mm.
Focus arm: 76mm diameter, 32mm pole size.
Base: B11 column large plate base, column height 280mm.
Illumination: optional LED Illumination.

Feature:
1. 45°  decline and 360°  rotate microscope head, pupil distance 54-76mm, bilateral visual adjustment ±5.
2. Standard 7X-45X observation head, optional and auxiliary lenses can be extended to 3.5X-270X, continuous zoom.
3. Suitable for PCB boards, electronic components, cell phone repair, object magnification observation study and other areas.
4. Ultra-high wide-angle, 360° no dead angle rotation, high wide-angle continuous zoom, high-definition coating dustproof mirror.
5. Optional objective lens, ergonomically designed cow horn eyecups, spotlight and shadow removal LED ring light.
6. 10x wide-angle eyepieces, field of view 200mm, high eye point design, 45° tilt of the inspection head, easy and comfortable to operate, long time use.
7. 0.7X-4.5X zoom range, objective magnification ratio 1:6.4, ensure image alignment.
8. LED lamp height adjustment, adjustable brightness size, spotlight does not leave a shadow, low power safety quality.
9. Standard WF10X25 eyepiece, high angle wide angle eyepiece, provide convenience for observers wearing glasses.
10. B11 column type large plate base.
