Description

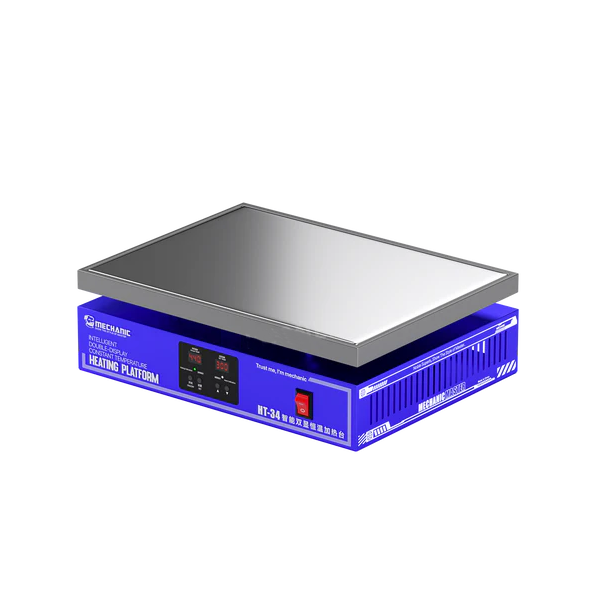

Mechanic HT-34 HT-30 intelligent double-display constant temperature heating platform welding table for mobile phone screen/frame removal, BGA chip soldering, circuit board repair, etc. Accurate temperature, anti-scaling, aviation aluminum, no deformation at high temperature.
Features:
1. An intelligent double-display thermostatic heating station with accurate temperature, anti-scalding, aviation aluminum, and no deformation at high temperatures.
2. This machine is constant-temperature heating equipment, suitable for any need for stable control of heating occasions, such as special materials, special areas of mold core heating, chip welding, LED lamp bead welding, PCB preheating, maintenance of electronic circuit boards, cell phone screen removal preheating, chemical experiments, heating, and curing, etc. It is easy to operate and has high work efficiency.
3. One machine in hand easy operation, for straight screen, curved screen, tablet screen, uniform heating, easy to remove the screen.
4. Safe and simple operation, precise temperature control, work efficiency and reduced product failure rate.
5. Click "Settings" to enter the temperature setting mode, fine-tune up and down, and click the PU/Down key to increase or decrease the temperature.
6. All-in-one square anti-scald design, special working environments are not afraid of high temperatures. Prevent misconduct, scald, and ensure the safety of operation.
7. Fast heat conduction, uniform heat, wear-resistant, corrosion-resistant, long life, reflow soldering.
Safety instructions:
1. Do not touch the surface of the heating platform and pile up debris to avoid burning or causing fire.
2. Do not drop liquid on the surface of the heating platform, high temperature may cause the liquid to boil and splash injury.
3. The machine should not work in a humid, flammable, explosive, and high-dust environment.
HT-30 parameter:
Model: Mechanic HT-30.
Heating platform: 300mm*300mm.
Size: 320mm*320mm*138mm.
Packing: 775mm*395mm*425mm.
Net weight: 5.5KG.
Gross weight: 6.0KG.
Power: 800W.
Temperature: 300°C。
HT-34 parameter:
Model: Mechanic HT-34.
Heating platform: 300mm*400mm.
Size: 420mm*320mm*138mm.
Packing: 775mm*485mm*425mm.
Net weight: 6.4KG.
Gross weight: 6.9KG.
Power: 1000W.
Temperature: 300°C.
Packing includes:
1 x Host.
1 x Power Cord.
