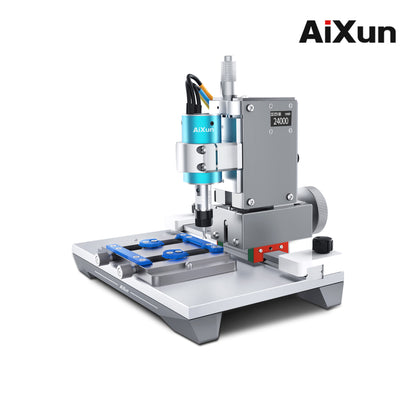

Aixun 2ND Gen IC Chip Grinding Machine for Touch IC CPU Nand CNC Motherboard Grinder Polishing Maintenance Platform Tools

Aixun 2ND Gen IC Chip Grinding Machine for Touch IC CPU Nand CNC Motherboard Grinder Polishing Maintenance Platform Tools

$179.99
$225.99 $179.99
Sale Sold out
Shipping calculated at checkout.
Voltage

Description
AIXUN 2ND Gen Chip Grinding Machine with upgraded global networking higher rotate speed and stronger power for motherboard touch IC grinding easily without burden. 2023 Upgraded AIXUN CNC grinder for grinding mobile phone IC CPU motherboard camera, etc. Lightweight mini Aixun intelligent chip grinding machine with a universal mold for cellphone touch IC Nand Flash CPU PCB board grinding removing repair.

Features:
1. A5 paper size, more power function, all-in-one design, commonly used in touch IC motherboard chip grinding, like CPU, Nand flash, etc.
2. 0.8-inch OLED display screen, rotate speed status display, control the speed at any time.
3. Multi-function design, grinding smoothly.
4. Standard package with motherboard grinding universal fixture and emery grinding heads in 2.5/4.0mm.
5. Rotate the fixture block at multi-angle suitable for all kinds of special-shaped motherboards, and chip grinding.

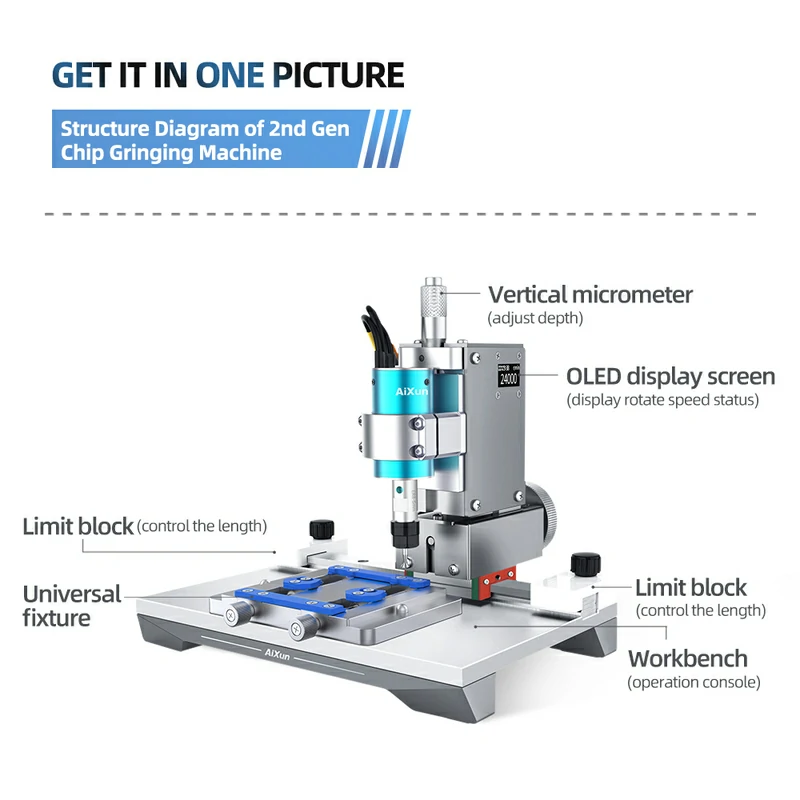

6. Linear guide and Bilateral Limit block design, adjust the positioning point at will, and then grinding depth, width, and length can be adjusted precisely.
7. Depth adjustment: adjust the depth up and down by adjusting the vertical micrometer.
8. Width adjustment: adjust the width left and right by adjusting the horizontal micrometer.
9. Length adjustment: fix the grinding movement length by adjusting the limit block.

Specifications:
Model: AIXUN 2nd Gen Chip Grinding Machine.
Max no-load speed: 24000r/min.
Input voltage: DC 12V.
Dimensions: 204x162x179mm.
Workbench size: 197x93mm.
Input voltage: 110V/220V.
Rated power: 100W.
Application: Touch IC, motherboard chip grinding, ect.

Grinding adjustment:
1. Depth adjustment: the grinding depth can be adjusted up and down by adjusting the vertical micrometer.
2. Horizontal micrometer: the grinding width can be adjusted left and right by adjusting the horizontal micrometer.
3. Length adjustment: Fix the grinding moving length by adjusting the stop block.

Note: the mold in the figure is optional for sale.

Package list:
1x Grinding machine with universal mold.
1x Power cable.
2x Grinding heads.
