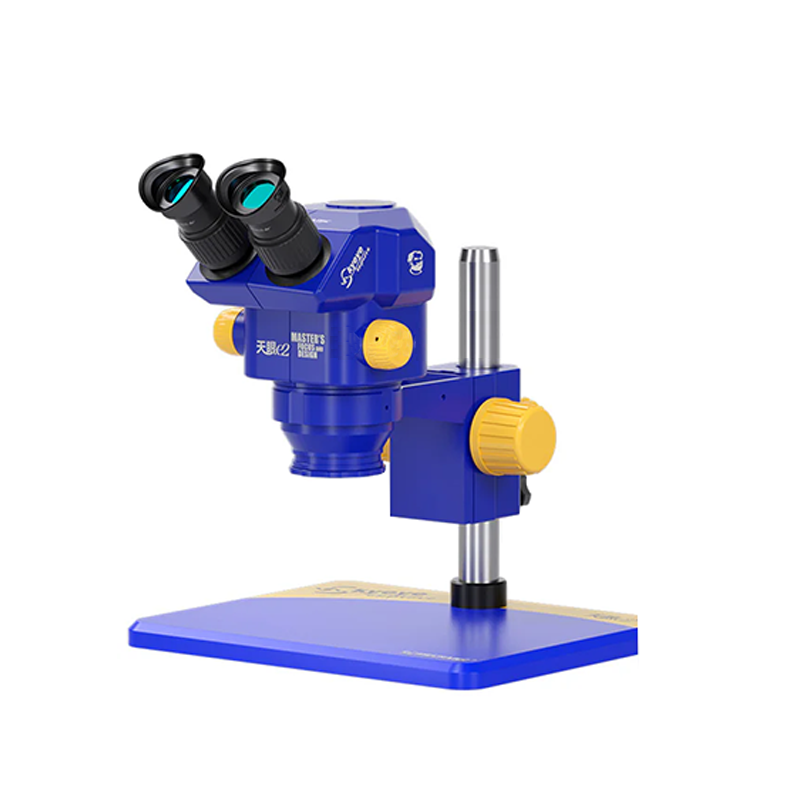

MECHANIC Eye E2-811 Industrial Binocular Stereo Microscope 7X-60X Magnification 360 Degree Rotation For phone Repair Tools

MECHANIC Eye E2-811 Industrial Binocular Stereo Microscope 7X-60X Magnification 360 Degree Rotation For phone Repair Tools

$194.12
$240.00 $194.12
Sale Sold out
Shipping calculated at checkout.
Option:

Description
7-60X Industrial Stereo Microscope - E2-B11 binocular stereo microscope for circuit board welding repair, mobile phone and tablet computer repair, watch repair, jewelry processing and identification, product quality inspection, biological observation, scientific research, etc.

Mechanic E2-B11 7X-60X Binocular Microscope Features:
1. 7X-60X continuous zoom.
2. 45° decline and 360° rotate microscope head, pupil distance 54-76mm, bilateral visual adjustment ±5.
3. Standard 7x-60x, used with different types of eyepieces and objective lenses can be expanded to 3.5x-300x, continuous zooming.
4. High-definition optical objective lens, focus adjustment arm.
5. LED lamp height adjustment, adjustable brightness size, spotlight does not leave a shadow, low power safety quality.
6. Standard WF10X25 eyepiece, high angle wide angle eyepiece, provide convenience for observers wearing glasses.
7. Standard with B11 column type large plate, other mats optional.

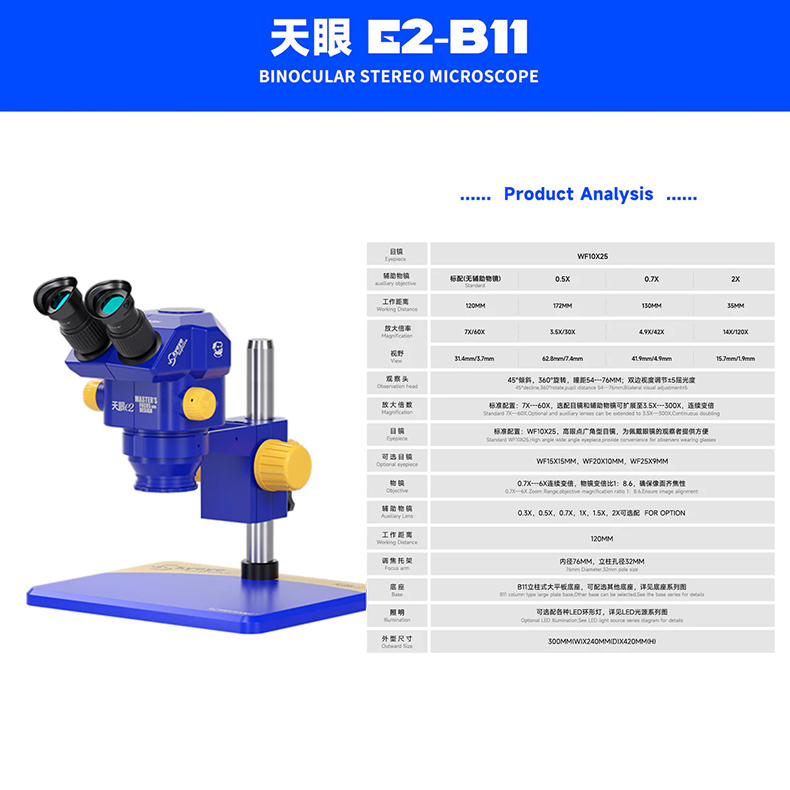

Parameters:
Binocular Microscope Head: 45-Degree Inclined, 360-Degree rotate, pupil distance 54-76mm, bilateral visual adjustment ±5.
Magnification: 7X to 60X Continuous Zoom.
Standard Eyepiece: WF10X/25, two pairs of rubber eye guards.
Standard lens: dust-proof mirror.
Working Distance: 120MM(standard), with other lenses: 172mm, 130mm, 35mm.
Objective: 0.7x-6x zoom range, objective magnification ratio 1:8.6, ensure image alignment.
Illumination: L65 LED light.
Focus arm: 76mm diameter, 32mm poly size.
Base: B11 column type large base, other holder base can be selected.
Optional Eyepiece: WF15X/15, WF20X/10, WF25X/9.
Optional Auxiliary lens: 0.3X, 0.5X, 0.7X, 1X, 1.5X, 2X.
